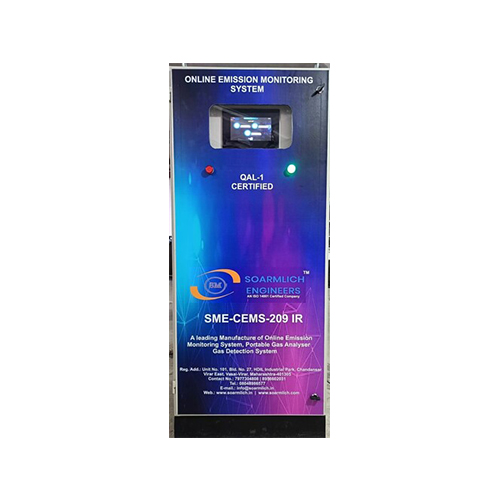

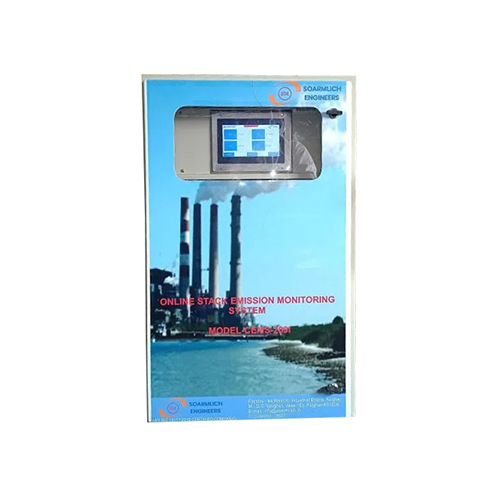

Online Stack Gas Analyser
- Measuring Range : 0-1000
- Display : Digital
- Current : 230 Volt (v)
- Product Type : Online Emission Monitoirng System
- Operating Temperature : 0 to 60 Celsius (oC)
- Working Temperature : 0 to 60 Celsius (oC)
- Application : Industrial
Description
Online Stack Gas Analyser Price And Quantity
- 625000.00 INR/Unit
- 1 Unit
Online Stack Gas Analyser Product Specifications
- Industrial
- 0 to 60 Celsius (oC)
- Online Emission Monitoirng System
- 0-1000
- 0 to 60 Celsius (oC)
- Digital
- 230 Volt (v)
Online Stack Gas Analyser Trade Information
- Cash Advance (CA)
- 500 Unit Per Month
- 10 Days
- All India
Product Description
Online Stack Gas Analyzer is engineered for non-stop analyzingïthe concentration of gases ranging from 100% V/V down to PPM level. This type of system is utilized for cleaning and drying the gas specimen for accurate and outstanding performance operation. It has a dual wavelength sensor, graphics LCD display, remote sampling, 4-20mA output for control purpose & minimal maintenance, and adjustable level relay output for alarm. Also, Online Stack Gas Analyzer has an internal pump to draw the sample of gas into the sensor by means of a dust particle filter from an intake, located at distance up to 40m from the monitor.
Product Details:
| Enclosure | 19″ Rack |
| Frequency | 60 Hz |
| Operating Temp | – 20 to + 250 Degree Celsius |
| Wattage | 400 W |
| Power Supply | 230 V AC |
| Usage/Application | Stack Monitoring |
| Country of Origin | Made in India |
| Analysis Time | 30 Sec. |
| Automation Grade | Automatic |
| Dimension | 570 x 600 x 370 mm |
| Measuring Range | 1000 mg/Nm3 |
| Response Time | 30 second |
| Display Type | Touch Screen Display |
| Humidity | 95% RH |
| Temperature | Ambient |
| Weight | 15 kg |
| Product Type | Gas Analyzer |
| Model Name/Number | CEMS-209i |
| Brand | Soarmlich Engineers |
